“SBurK” Documentation

“Admin Web Panel ”

What is SBurK?
Prerequisites
Installation
Configuration
FAQ

A) What is SBurK? - top

SBurK is a comprehensive system for school bus tracking that manages the daily school bus operation. SBurK consists of three sub systems, which are

Laravel admin web panel
Android mobile app for parents
Android mobile app for drivers

Here we present the Laravel admin web panel sub system

B) Prerequisites - top

To ensure that the Laravel admin panel fully operational, some prerequisites need to be installed. In the following, I will list the required prerequisites and show how you can install them on a Ubuntu machine

Apache web server

	sudo apt update
	sudo apt install apache2

Mysql server database engine

	sudo apt install mysql-server

Set the password of the root for the mysql server database engine

		#open a mysql terminal
		sudo mysql -u root #press enter when prompted for a password
		#write the following in mysql terminal
		ALTER USER 'root'@'localhost' IDENTIFIED WITH mysql_native_password BY 'YOUR PASSWORD HERE';
		#exit the mysql terminal
		exit;

Php 8.1

	sudo apt install software-properties-common
	sudo add-apt-repository ppa:ondrej/php
	sudo apt update
	sudo apt install php8.1

Php 8.1 extensions

sudo apt install php8.1-common php8.1-mysql php8.1-xml php8.1-xmlrpc php8.1-curl php8.1-gd php8.1-imagick php8.1-cli php8.1-dev php8.1-imap php8.1-mbstring php8.1-opcache php8.1-soap php8.1-zip php8.1-intl -y

sudo apt-get install php-curl php-xml php-mbstring -y

Enable mod_rewrite for Apache

	sudo a2enmod rewrite
	sudo systemctl restart apache2

Configure apache for php8.1

	sudo apt-get install libapache2-mod-php8.1
	sudo a2enmod php8.1
	sudo systemctl restart apache2

Composer

	sudo apt-get update
	php -r "copy('https://getcomposer.org/installer', 'composer-setup.php');"
	sudo apt-get install curl php-cli php-mbstring git unzip
	sudo php composer-setup.php --install-dir=/usr/local/bin --filename=composer

Please make sure that you have accounts for
- Google maps API

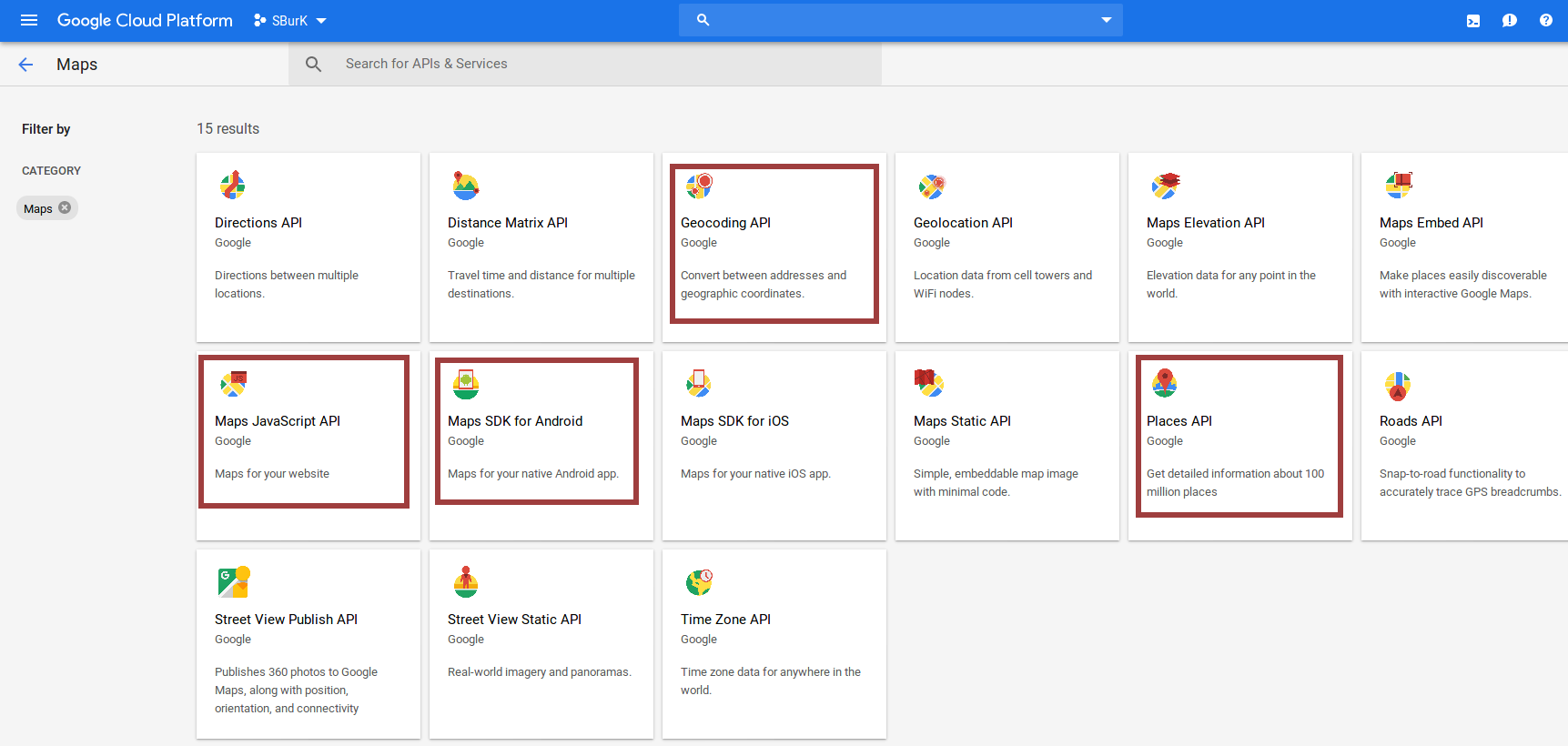

  Please make sure that you enable the following APIs
  - Geocoding API
  - Maps JavaScript API
  - Places API
  - Maps SDK for Android
- Firebase Cloud Messaging
- Stripe SDK OR RazorPay SDK
- Twilio SDK

C) Installation - top

I assume that the purchased Laravel admin web panel is located in the folder "schoolbustrackerbackend" at "/path/to/schoolbustrackerbackend". Please follow the following steps

Go inside the folder

	cd /path/to/schoolbustrackerbackend

Ensure that php 8.1 is the current verison of your php by typing the command

	sudo update-alternatives --config php

Install dependencies

	composer install

Make a link to storage folder in the public folder

	php artisan storage:link

Create the .env file from the provided example .env

	cp .env.example .env

Edit the .env file and set the following

	APP_URL = your web site url, for example www.mydomain.com
	DB_USERNAME = root
	DB_PASSWORD = password of root user of mysql database

	Note: Use V2 Checkbox when you register your backend site in Google Recaptcha as shown in the image below

	RECAPTCHA_SITE_KEY= your Recaptcha site key
	RECAPTCHA_SECRET_KEY= your Recaptcha secret key

Generate a new key

	php artisan key:generate

Give full permission to storage and bootstrap/cache folders

	chmod -R 777 storage bootstrap/cache

Configure an Apache virtual host for SBurK

Change owner of the public folder

	sudo chown -R $USER:$USER public
	sudo chown -R $USER:$USER storage/app/public/avatars/

Create a configuration file for the virtual host for SBurK

	sudo cp /etc/apache2/sites-available/000-default.conf /etc/apache2/sites-available/SBurK.conf

Edit the configuration file "/etc/apache2/sites-available/SBurK.conf" and replace its contents with the following

	<VirtualHost *:80>
		ServerName SBurK
		DocumentRoot /path/to/schoolbustrackerbackend/public
		<Directory /path/to/schoolbustrackerbackend/public>
			Options Indexes FollowSymLinks MultiViews
			AllowOverride All
			Require all granted
		</Directory>
		ErrorLog ${APACHE_LOG_DIR}/error.log
		CustomLog ${APACHE_LOG_DIR}/access.log combined
	</VirtualHost>

Enable the configuration file "SBurK.conf"

	sudo a2dissite 000-default.conf
	sudo a2ensite SBurK.conf
	sudo systemctl restart apache2

Open mysql terminal and create a database with name "schoolbustracker_db"

	sudo mysql -u root -p #enter the root password when prompted
	create database schoolbustracker_db; #then exit the mysql terminal

Make sure that you give full permission to storage and bootstrap/cache folders

	sudo chmod -R 777 storage bootstrap/cache

Migrate the database

	php artisan migrate --seed

Install redis server

	sudo apt-get install redis-server
	sudo systemctl enable redis-server.service
	sudo apt-get install php-redis

Install npm

	sudo apt-get install nodejs
	sudo apt-get install npm

Install Laravel echo server

	sudo npm install -g laravel-echo-server
	sudo laravel-echo-server init #I recommend to press enter to choose the default answer for every question (except if you have https instead of http)
	sudo nohup laravel-echo-server start & #start the laravel-echo-server in background and make it permanently alive

Update permissions of privacy and terms pages.

chmod 777 public/privacy.html
chmod 777 public/terms.html

Install Firebase cloud messaging

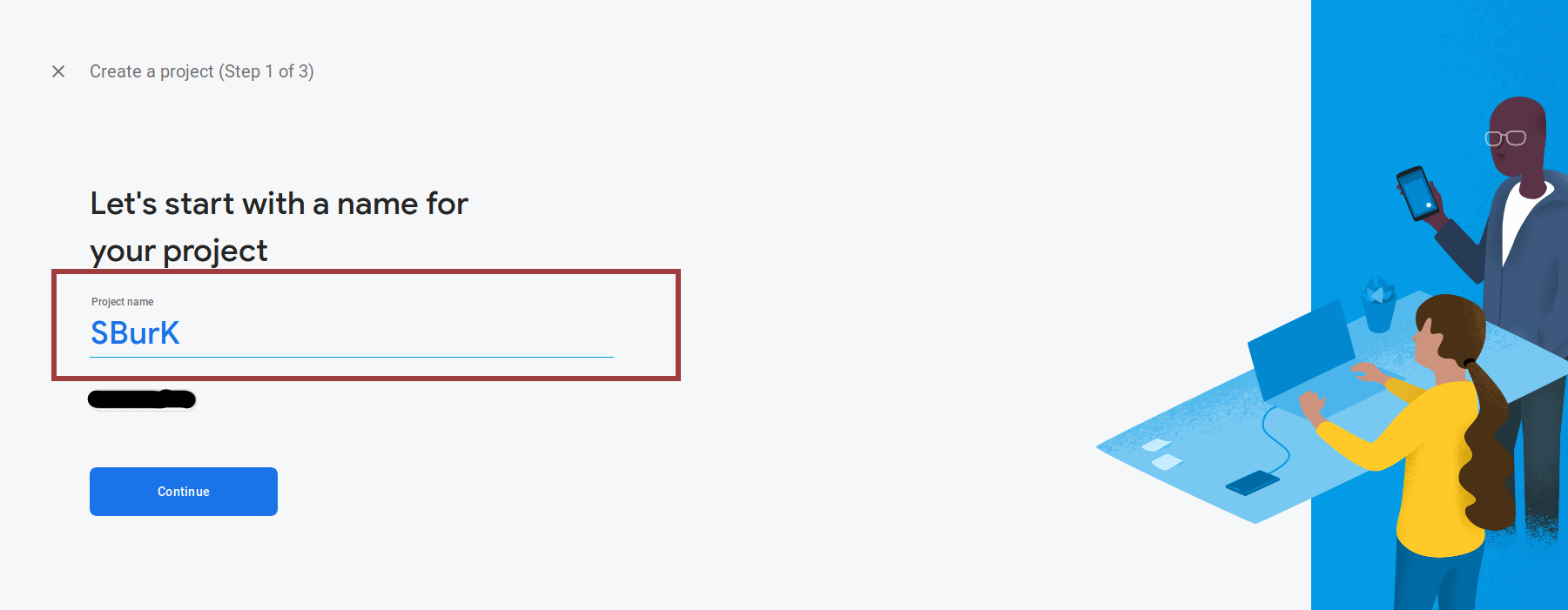

- Go to your account in https://console.firebase.google.com and create a new project. Name it "SBurK".

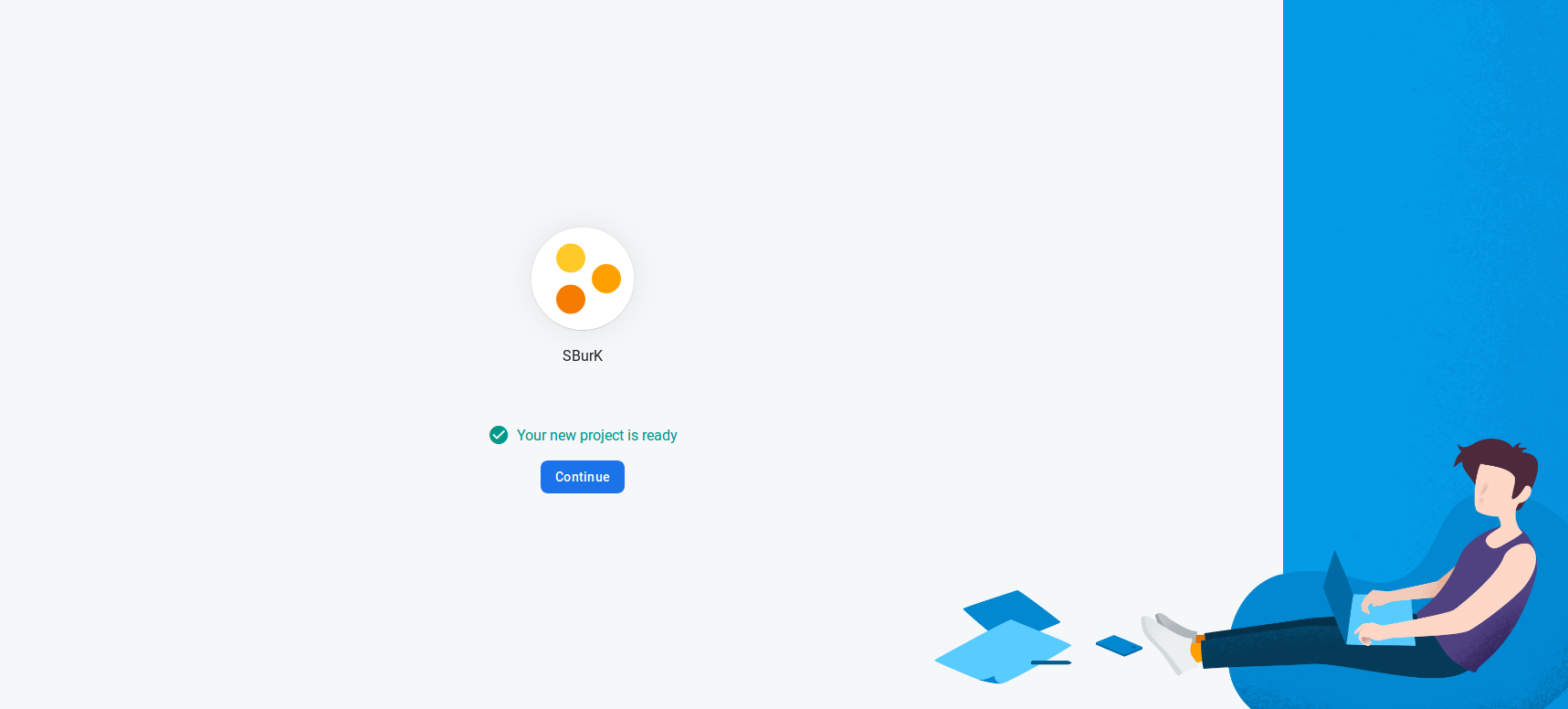

- Continue until project ready

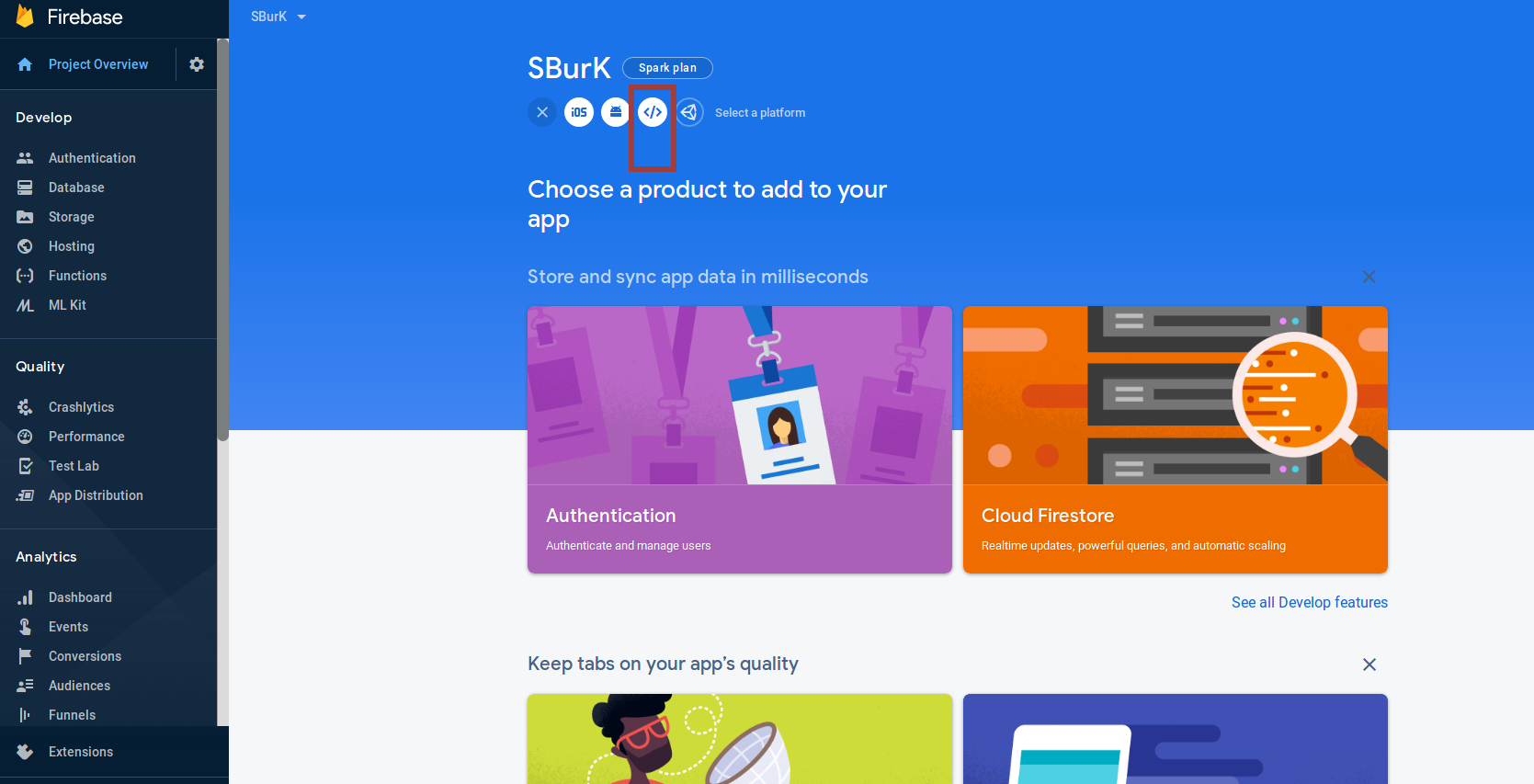

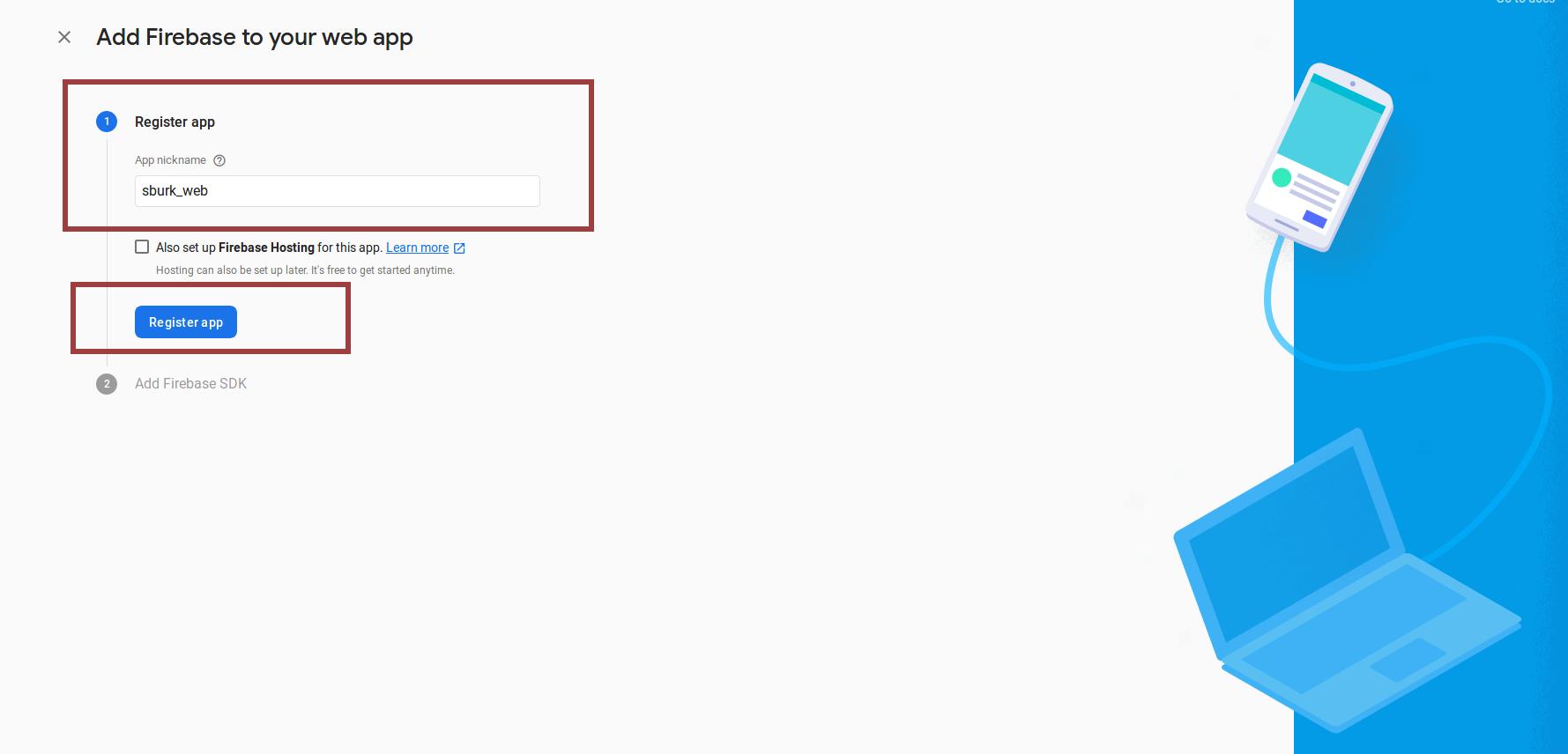

- Create a new web app
- Enter "sburk_web" for the new web app nickname, then click "Register app"

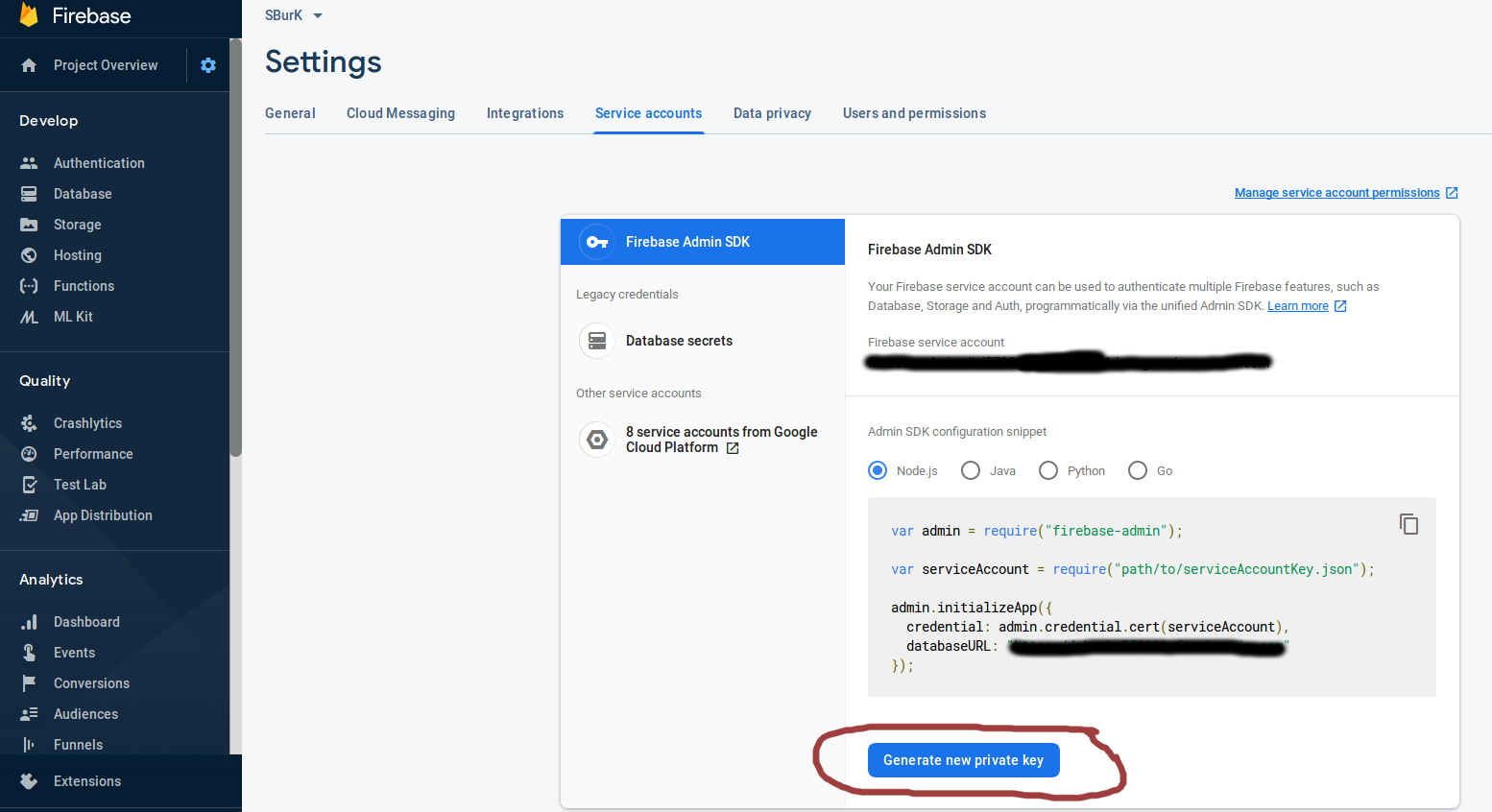

- Go to settings of the web app, then open "Service accounts" tab. Click on "Generate new private key". Name the downloaded file "fcm.json" and add it to the public folder at "/path/to/schoolbustrackerbackend/public"

D) Activation & Configuration - top

Once you installed SBurK as indicated above, login with the super admin account credentials to set the different keys used by SBurK

Go to this link and enter your purchase key. You can get the purchase key from your CodeCanyon download section. More information is here. domain (or localhost). You will get two secure keys. One for your web site url and the other for localhost. Copy your secure keys and keep it in a safe place as you will not be able to generate them again.
Open your web site and login with the superadmin account.
```
	User: superadmin@SBurK.com
	Password : admin
```
Navigate to "Activation" menu from the sidebar
Enter your secure key and click "Activate"
Email settings:
- Setting the email is very important for sending the reset password links and for sending payment remainders.
- Edit the .env file by changing the following lines
- Note that, if you use gmail, then the app password is not as the same of your gmail account password. You can check here to learn how to generate the password.
```
	MAIL_USERNAME=YOUR GMAIL EMAIL
	MAIL_PASSWORD=YOUR APP PASSWORD
	MAIL_FROM_NAME=SBurK
```

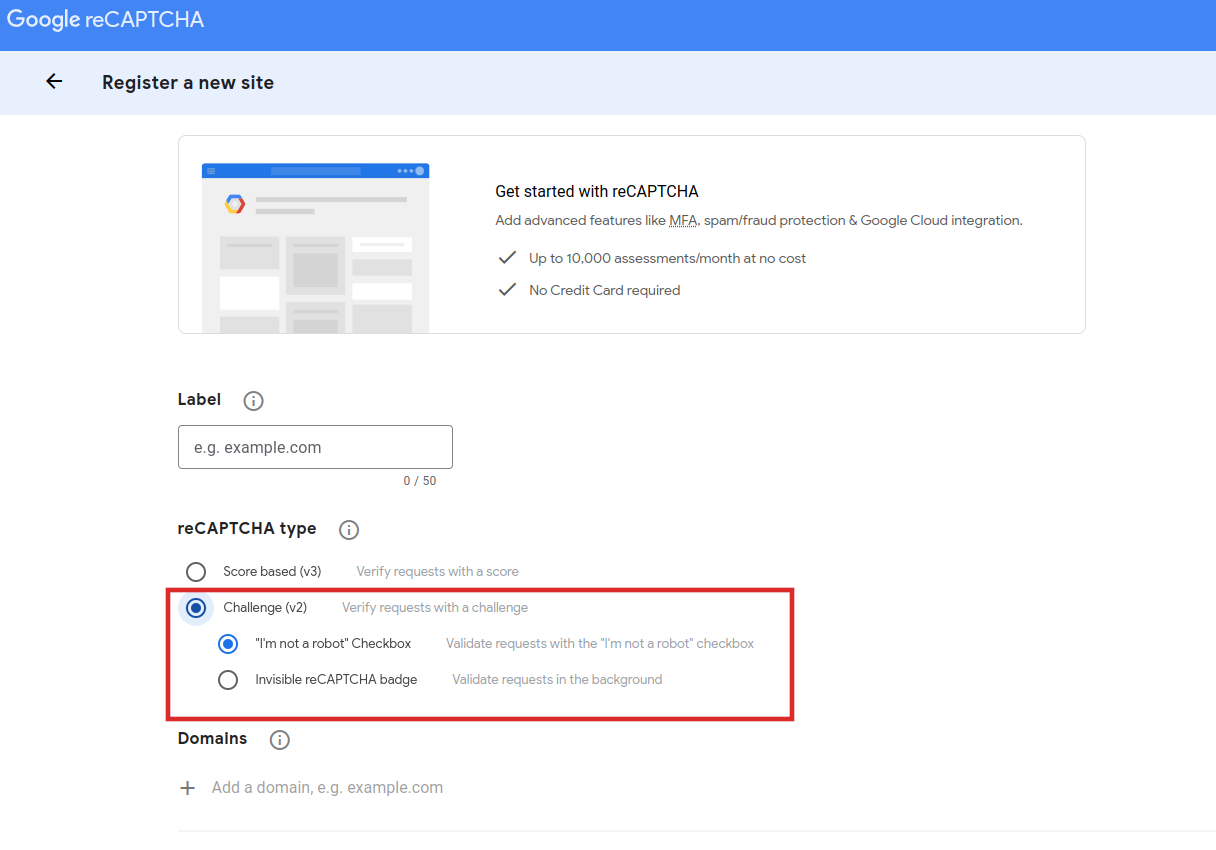

reCAPTCHA settings:
- Get your reCAPTCHA keys and make sure that you have selected v2 Checkbox when you register your backend site.
- Edit the .env file by changing the following lines to the add the keys
```
	RECAPTCHA_SITE_KEY=
	RECAPTCHA_SECRET_KEY=
```

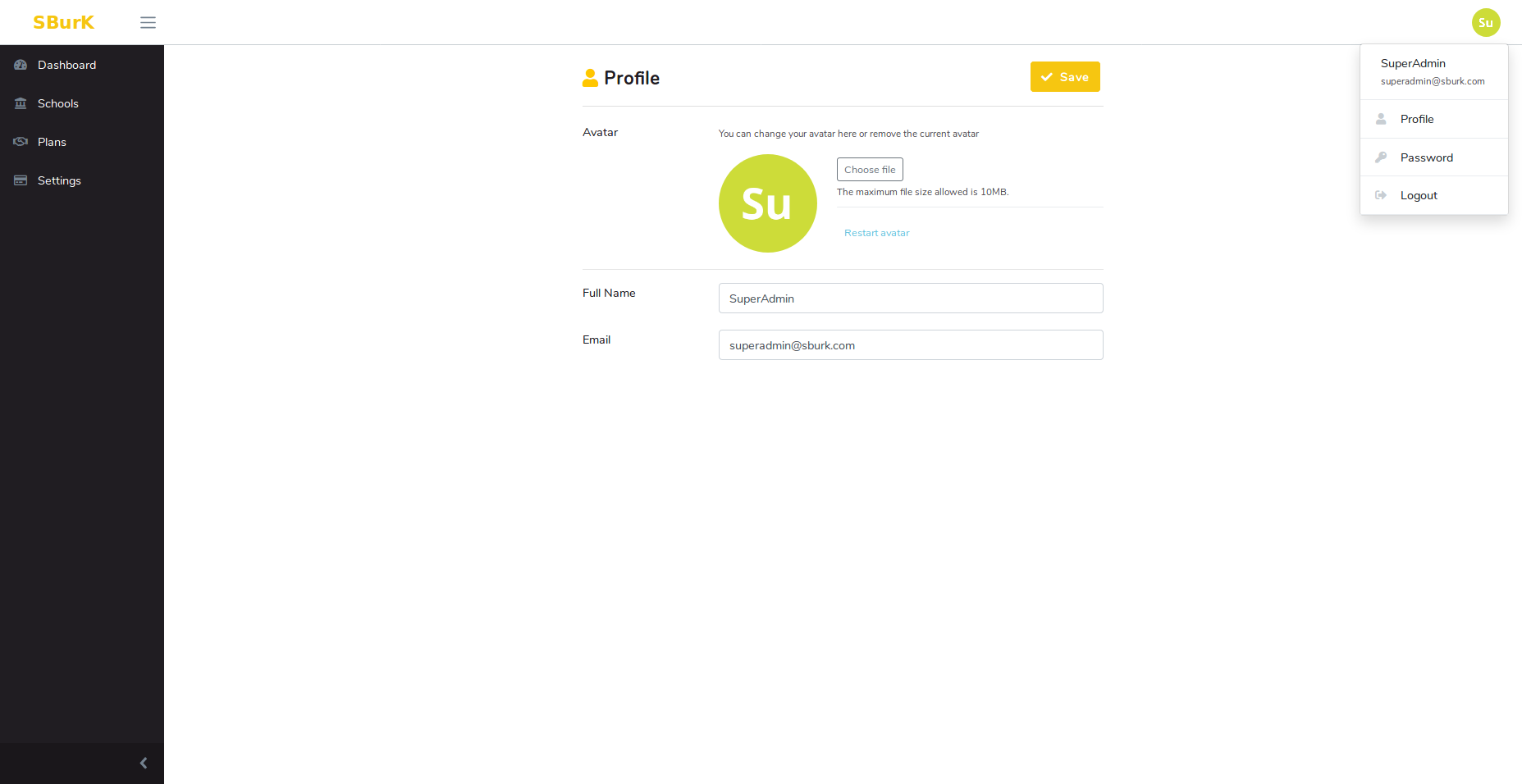

Change your email and password

Go to "settings" from the left pane and set
- Google maps API key

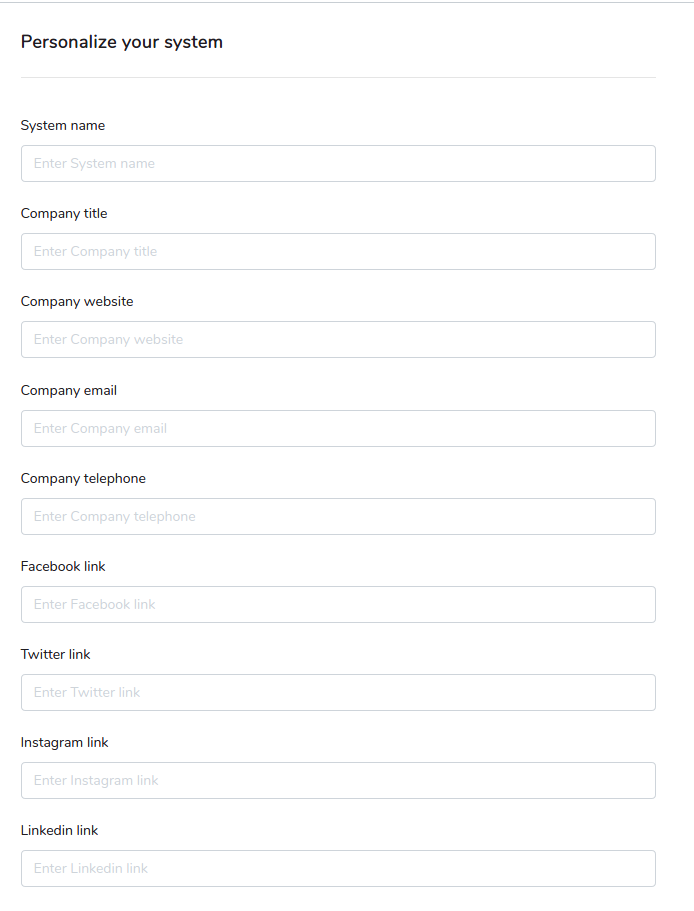

- In Personalize your system, set the following

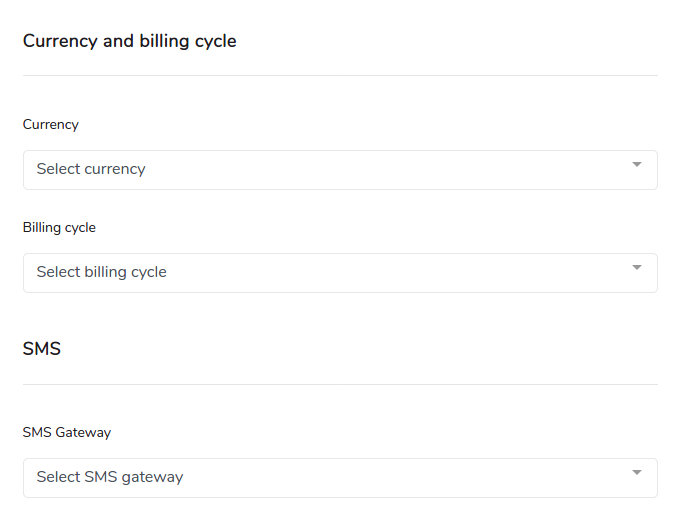

- In Currency and billing cycle, select the following

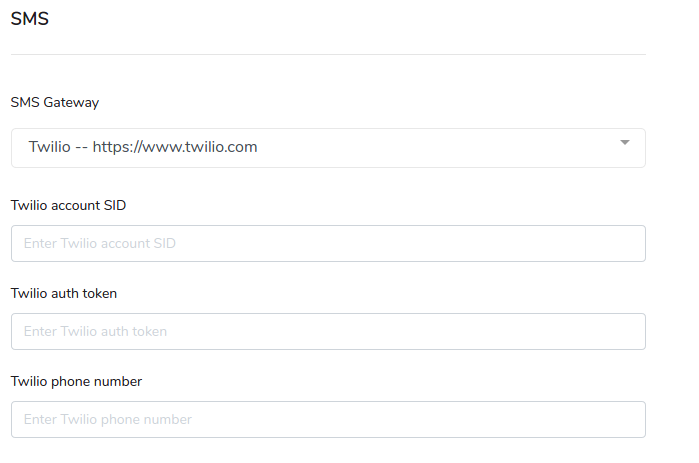

- In SMS, select your SMS gateway (optional)
- Stripe or RazorPay or Flutterwave enable (optional but 'Pay As You Go plan' will not work if you did not setup the payment gateway)
- (optional) Choose your SMS gateway and enter the configuration of the selected gateway. For example, if you select Twilio, then you will need to get the following configuration from Twilio dashboard
Configure Stripe payment gateway

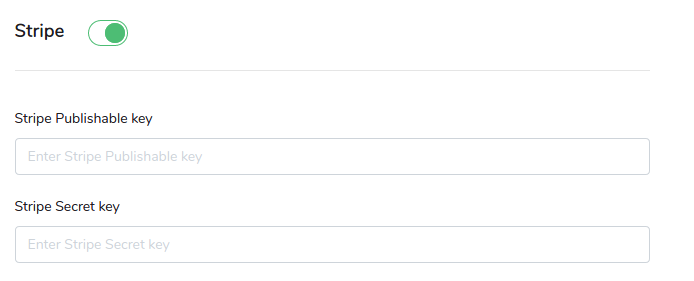

1. If you enable Stripe, get the "API keys" from your Stripe account

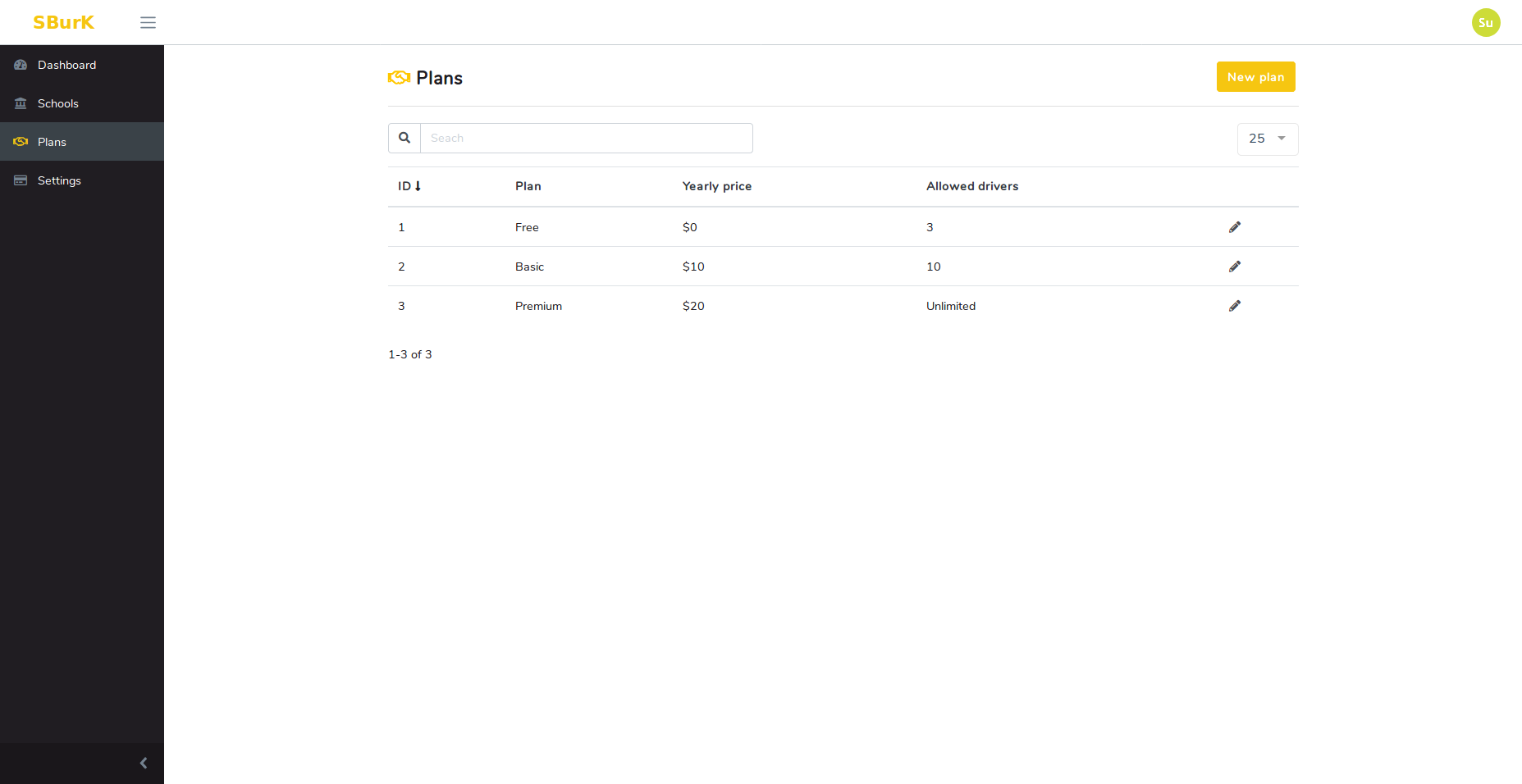

2. Edit the payment plans
Configure RazorPay payment gateway

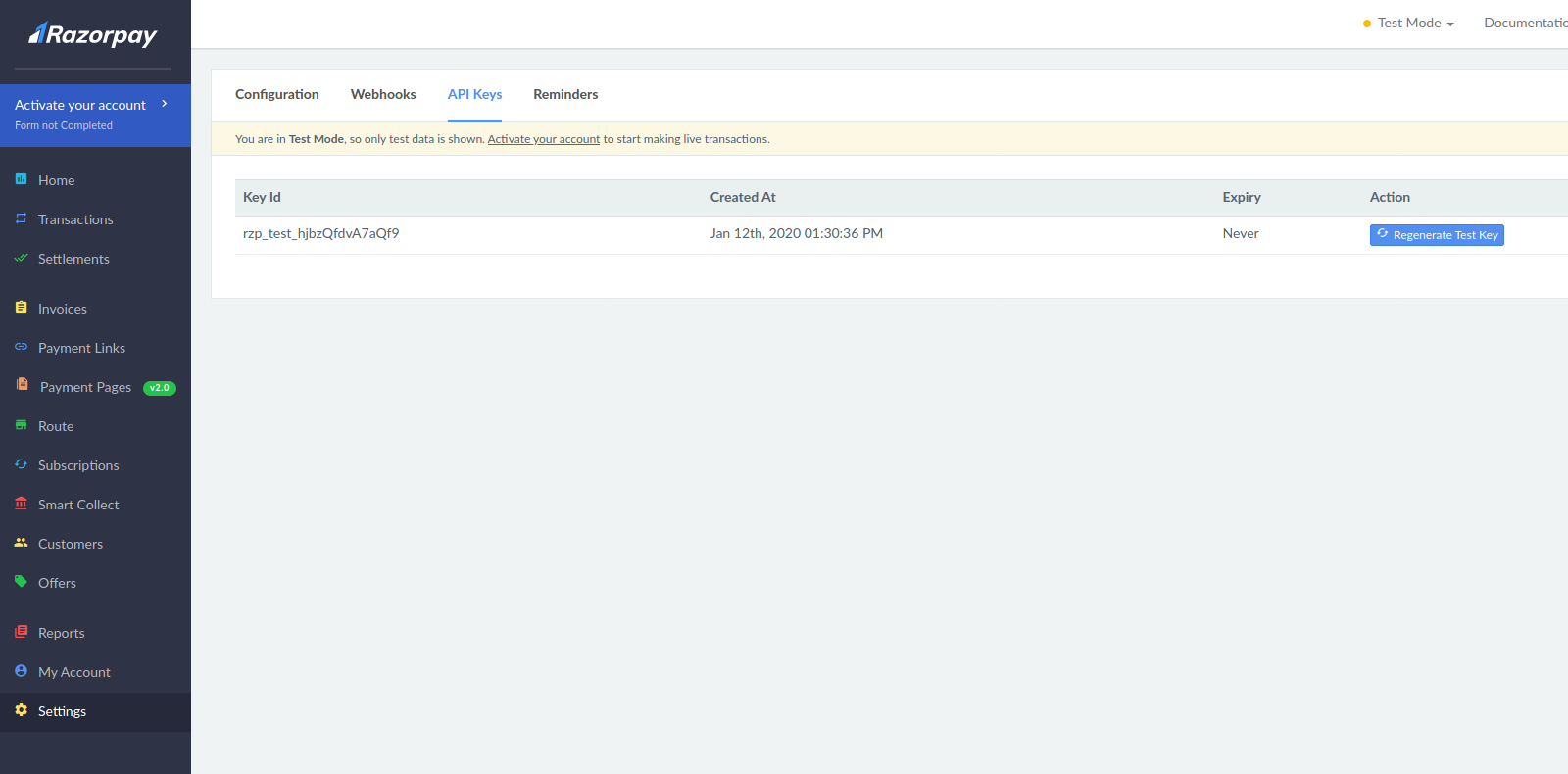

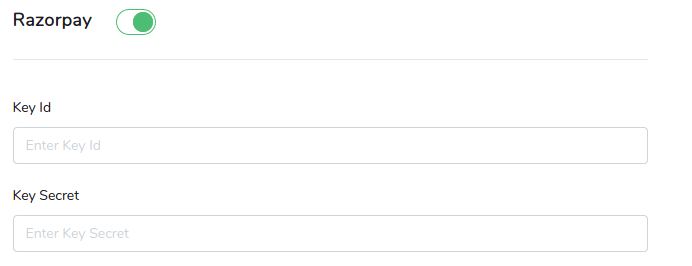

1. If you enable RazorPay, you need to get both "Key Id" and "Key Secret" from RazorPay dashboard
  - Open your "RazorPay" account dashboard
  - Choose "Settings" section in the left pane, then click on "API Keys"
  - Get both "Key Id" and "Key Secret" and enter them in SBurK settings page

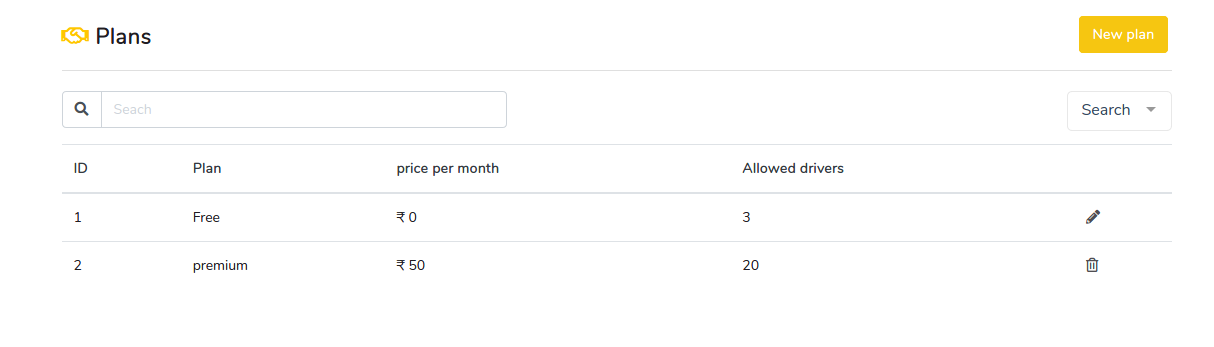

2. Edit the payment plans

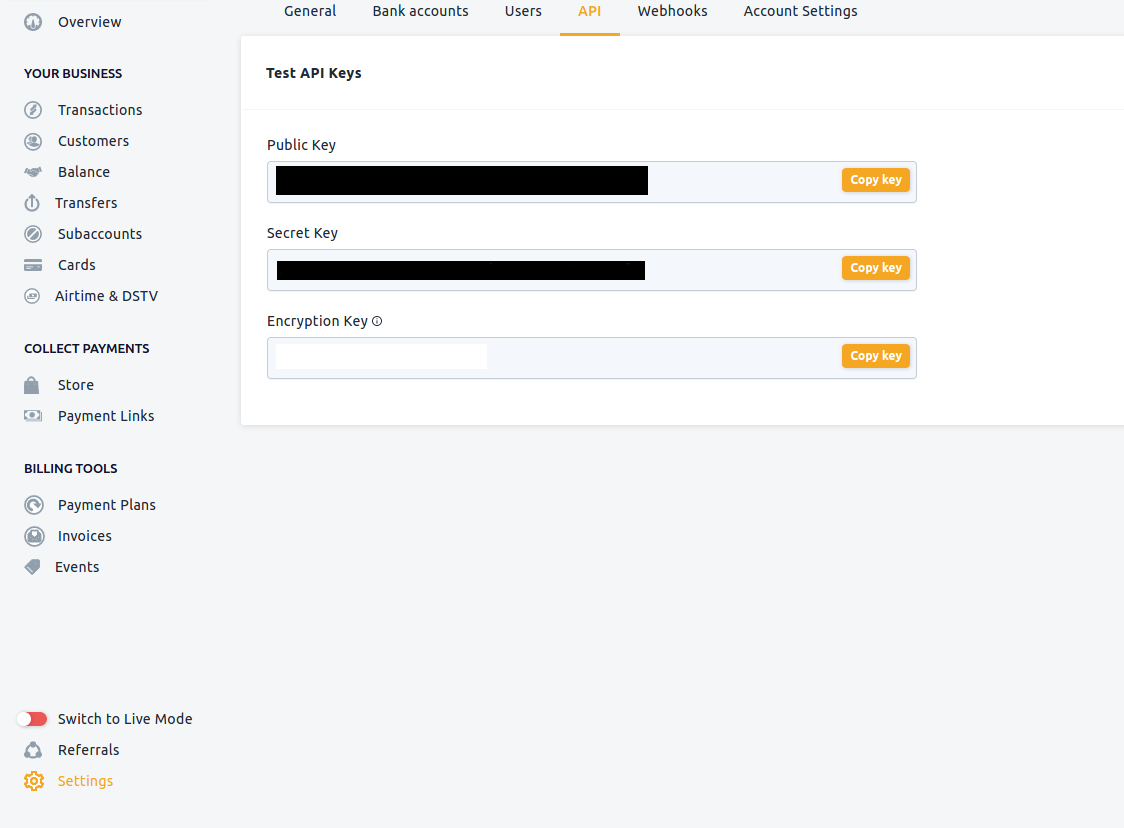

Configure Flutterwave payment gateway

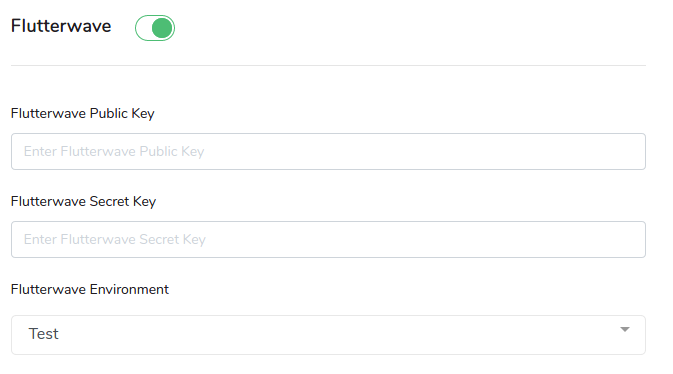

1. If you enable Flutterwave, you need to get both "Public Key" and "Secret Key" from Flutterwave dashboard
  - Open your "Flutterwave" account dashboard
  - Choose "Settings" section in the left pane, then click on "API"
  - Get both "Public Key" and "Secret Key" and enter them in SBurK settings page

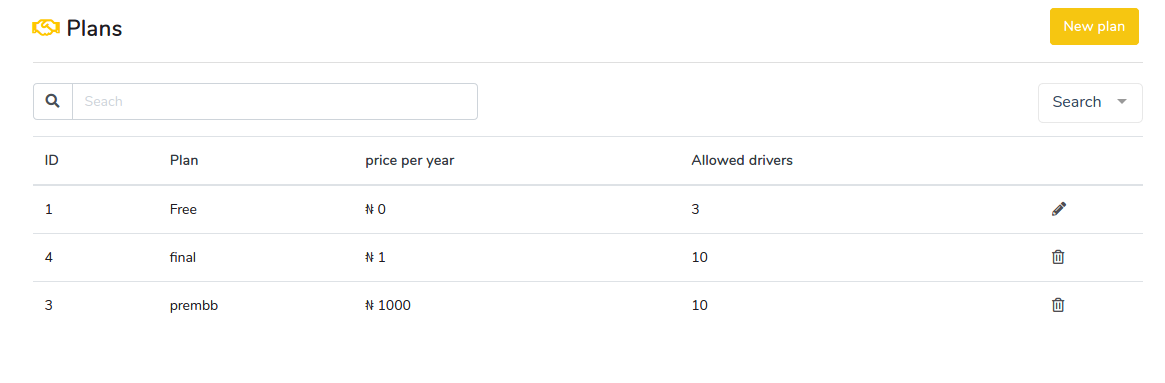

2. Edit the payment plans

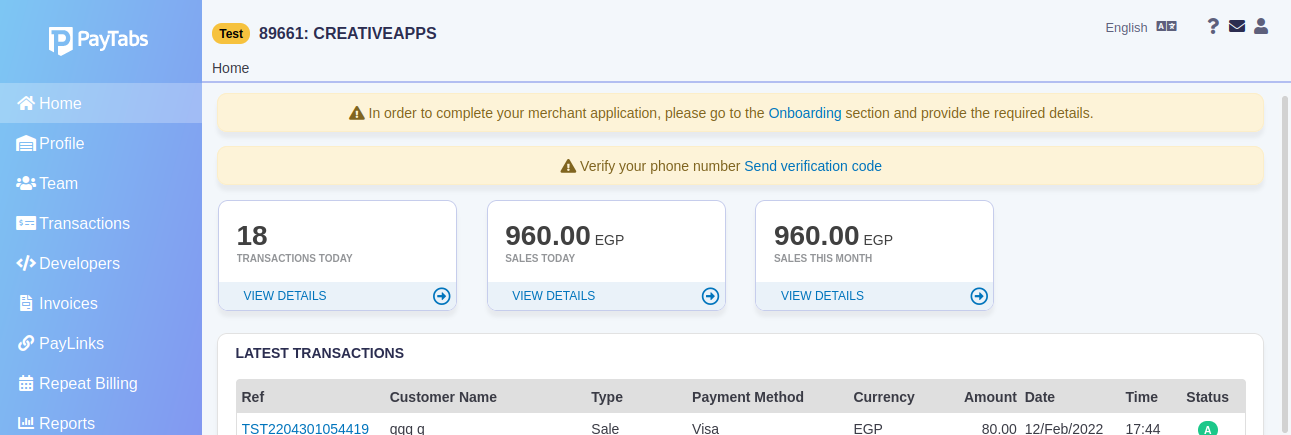

Configure Paytabs payment gateway

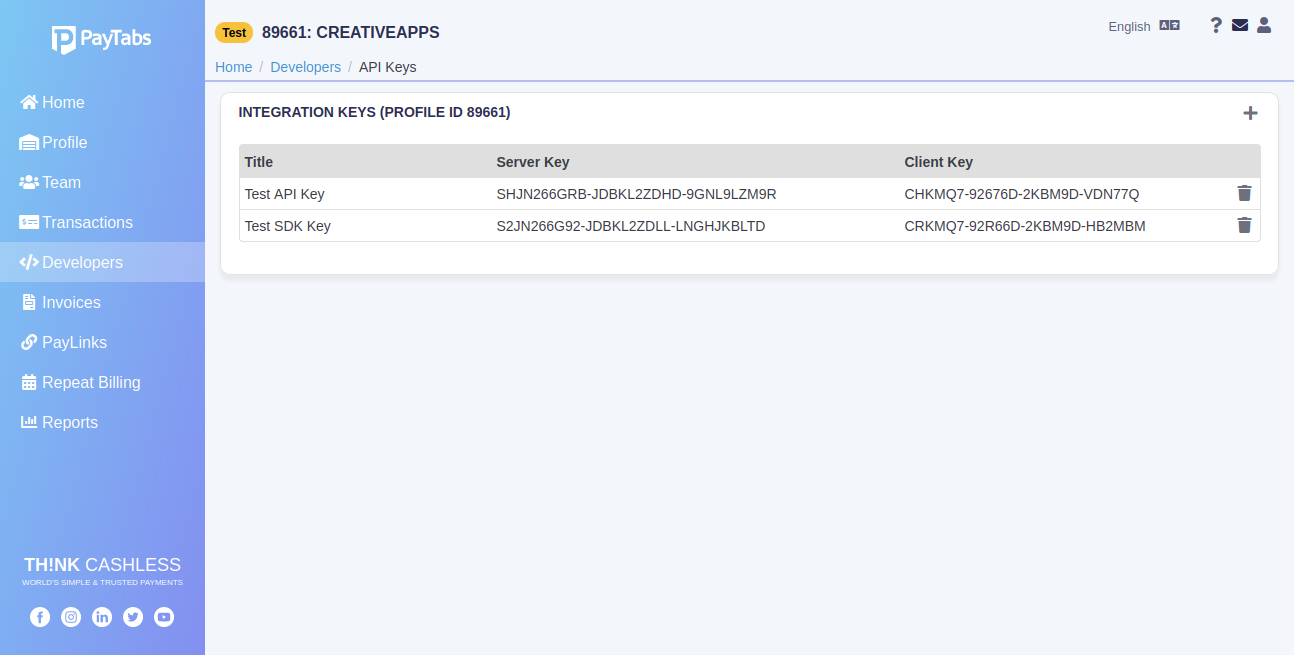

1. If you enable Paytabs, you need to get the "API Key" from Paytabs dashboard
  - Open your "Paytabs" account dashboard
  - Choose "Developers" section in the left pane, then click on "API"
  - Get the "API Key" and enter them in SBurK settings page
  - Obtain your Profile Id and enter it in the SBurK settings page (the number before your name)
  - Choose one of the following regions: 'ARE','EGY','SAU','OMN','JOR','GLOBAL'
Add scheduling entry for cron. This step is very important to handle plan expiration for both schools and parents
- First open your terminal and run
- Then add the following line

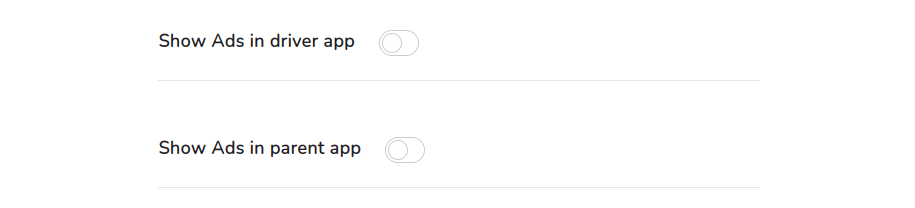

Configure Ads
- Enable or disable ads on both apps
You can choose which maps will be used in the apps. To choose Map Type

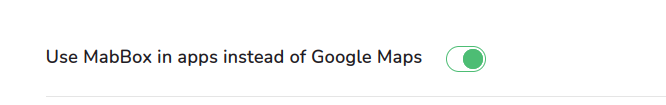

- Enable or disable the usage of MapBox instead of Google Maps in the apps

Windows Steps:

Download Bitnami Wamp from https://downloads.bitnami.com/files/stacks/wampstack/7.4.30-0/bitnami-wampstack-7.4.30-0-windows-x64-installer.exe. Make sure that the version is 7.4.
Install Bitnami
Download and install composer from here https://getcomposer.org/Composer-Setup.exe
Open WAMP Bitnami application from start menu
Click on "Goto Application Folder". It will open the folder "C:\Bitnami\wampstack-7.4.30-0". Navigate to "apache2" folder and copy the sburkbackend into this folder
Open CMD
Run: cd C:\Bitnami\wampstack-7.4.30-0\apache2\sburkbackend
Run: composer install (if it fails run: composer self-update 1.10.1 and retry)
Run: php artisan storage:link
Rename .env.example to .env
Replace YOUR_PASSWORD_HERE with your MySQL password
Run: php artisan key:generate
From WAMP Bitnami application, open phpMyAdmin, enter user and password (root user credentials)
Open phpMyAdmin console from the lower part. Write create database schoolbustracker_db;
Return to your CMD, then run: php artisan migrate --seed
Copy the content of the public folder inside C:\Bitnami\wampstack-7.4.30-0\apache2\htdocs
Edit the index.php file in htdocs folder by changing the lines:

require __DIR__.'/../vendor/autoload.php'; to require __DIR__.'/../sburkbackend/vendor/autoload.php';
$app = require_once __DIR__.'/../bootstrap/app.php'; to $app = require_once __DIR__.'/../sburkbackend/bootstrap/app.php';

18. Open localhost then you will be able to see SBurK running

For installation video click here

E) FAQ - top

How many payment plans can be added to SBurK?

There is no limit on the number of plans.

Are all plans in SBurK are paid plans?

No. There is always one "free" plan that can not be removed. The super admin can add any number of paid plans after that.

Are all plans in SBurK must be paid by schools?

No. There is always one "Pay As You Go" plan that can not be removed. This plan allows parent to recharge their wallets and pay for using the tracking apps (not the schools).

What happened when a school admin unsubscribes from a plan?

The new plan will take effect immediately and the school account will not be able to continue its current subscription. If the new plan is a downgrade compared with the existing plan, some drivers are removed to meet the new plan limit. The parents assigned to deleted drivers will be displayed in red until school admin re-assign them to another set of drivers. Note that, the deleted drivers may be recovered if the school admin subscribes to a higher plan with a larger number of drivers such that the deleted number of drivers are within the plan limit if they are restored.

What happened when a school admin deletes a driver?

The parents assigned to this driver will be displayed in red until school admin re-assign them to another driver.

Laravel-echo-server not working

Configure your firewall and make sure that you allow traffic through the port 6001

How do I know that the laravel-echo-server is working correctly?

Go to the url of the admin panel and append it with 6001, i.e., open http://YOUR_WEBSERVER_URL:6001 and check if it gives OK

The home page of the admin panel gives a blank white page
- Make sure that you give full permission to storage and bootstrap/cache folders by
- Make sure that you edit the .env file correctly
After registration of a new school account, the system displays error that it can not create avatar for the new school

Make sure that you give full permission to storage folder

Once again, thank you so much for using SBurK. As I said at the beginning, I'd be glad to help you if you have any questions. I'll do my best to assist. If you have a more general question relating to the items on CodeCanyon, you might consider visiting the forums and asking your question in the "Item Discussion" section.
